The Mobtakeran Sanaye Mechatronic Parsian is a knowledge base company in the field of paper making machinery. With its broad portfolio of systems, products, and services, and insists on modern management philosophy of innovation and quality, Mobtakeran Sanaye Mechatronic Parsian has been able to occupy a significant part of the national market.

Mobtakeran Sanaye Mechatronic Parsian pursues surviving with quality, seeks development with honesty, does the best to serve all customers, expand international market while developing national market steadily.

As a full-line supplier, we offer customer-centric solutions from a single source for an efficient and sustainable paper manufacturing process. By offering holistic project packages that include project management and consulting, we take overall project responsibility for you and significantly reduce complexity and interfaces.

Some products

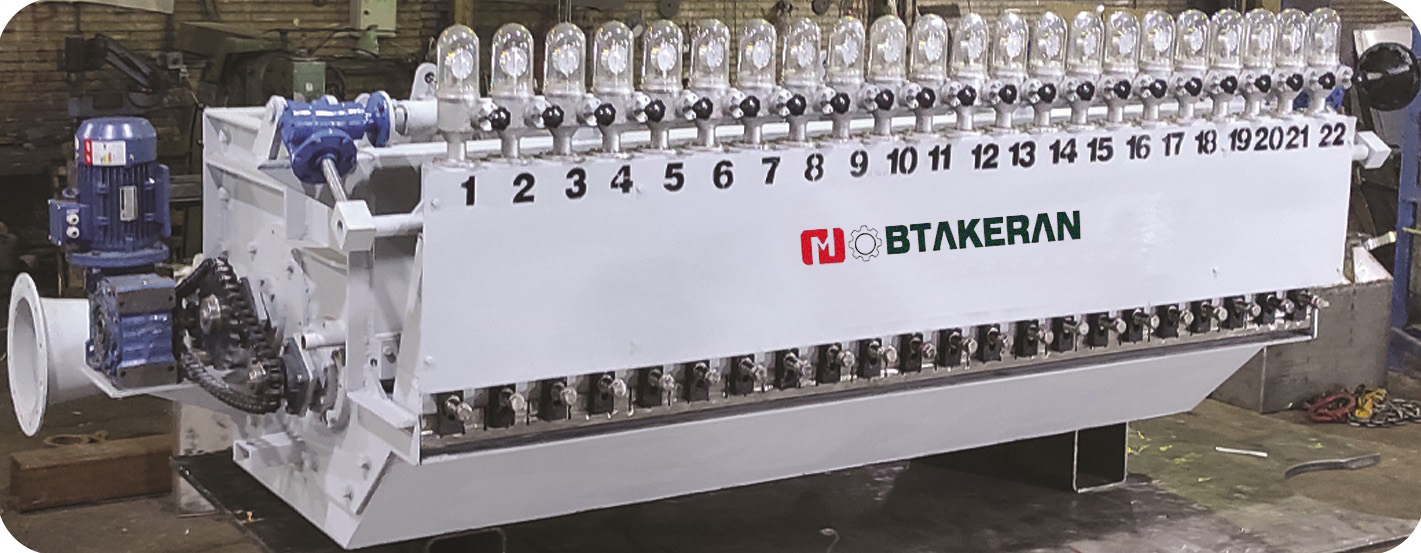

Headbox

The headbox is the first equipment of the paper machine. It is a device that delivers very low consistency stock uniform pulp flow on the wire of the fourdrinier, through the slice, at approximately the same velocity as that of the wire. The formation and uniformity of the final paper product depends on the dispersion of the fiber and fillers.

The fiber arrangement in the sheet will define the great majority of the properties desired in the final paper product. The forming section performs the most important role in this regard. It initiates the water removal from the suspension in a controlled way that will result in the desired fiber distribution for a specific paper grade. Through its complete portfolio, Mobtakeran Sanaye Mechatronic Parsian is able to provide the high-quality products in the forming section for packaging paper grades.

Focusing on the highest quality, best runability, easy maintenance and comfortable fabric and roll replacement are the base of designing fourdriniers in the Mobtakeran Sanaye Mechatronic Parsian factory.

The main function of the press section is the mechanical dewatering of the paper web. Furthermore, the press configuration determines surface properties such as smoothness. The goal in the press section is to achieve the greatest possible dewatering  . In addition, the highest possible dry content contributes to higher web strength. The paper web enters the press section with a dry content of 15 to 22% and leaves the section with a dry content of 40 to 55%.

Drying section consist of a defined number of steam-heated drying cylinders in direct contact with the paper as it leaves the press section that contains about 50% water. For water removal, thermal energy (steam) is applied, causing the water to evaporate as it passes through the dryer section.

The dryer section must deliver a consistently accurate moisture profile and a fast and smooth transport of the paper web.

furturmore, as energy efficiency increasingly becomes a significant factor in paper manufacturing, the engineers of Mobtakeran Sanaye Mechatronic Parsian can be able to present high technology solution to solving this issue.

Surface sizing machine is play an important role in paper making process, which enhances the physical performance of paper by verifying the interstice glossiness between the filled paper fiber and paper fiber after paper sizing has been conducted.

Paper sizing machine can greatly improve the performance of paper, such as toughness, smoothness, stiffness, The layered strength, etc.

the sizing machine is generally located between pre-dryer and post-dryer and structurally have an oblique arrangement, which is composed of a pair of sizing rollers arranged at a special angle In the horizontal direction.

The Mobtakeran Sanaye Mechatronic Parsian is able to manufacture surface sizing machine up to 3200 mm of paper width.

One of the essential machines for the final quality of papers is the calender. Calendering means the deformation of the surface of paper or board under pressure and temperature (optional). By passing through one or more roll nips in the calender, the surface of the paper can be further smoothed and according to its intended use.

Mobtakeran Sanaye Mechatronic Parsian offers calendering solutions for every requirement: soft nip or hard nip calendering, with single or multiple nips, whether calendering on one or both paper sides. With calendering, you achieve the desired surface properties of your paper and board.

The purpose of the reel drum is to continuously wind up and store the paper produced by the paper machine while it operates at full speed. Here, it is essential that the paper is wound without defects, such as wrinkles or bursts across the paper diameter

Mobtakeran Sanaye Mechatronic Parsian manufactures Voith-type winder for packaging paper. The two-drum winder was specially developed for different fields of application.

two-drum winders which manufactured by Mobtakeran Sanaye Mechatronic Parsian focus on high-capacity winding.

The design speed of 1500 meters per minute with a working speed of 1000 meters per minute for a working width of 2.5 meters has been implemented for the first time in Iran. Mechatronics Industrial Group can manufacture Voith-type winder up to 3.8 meters of paper width.
